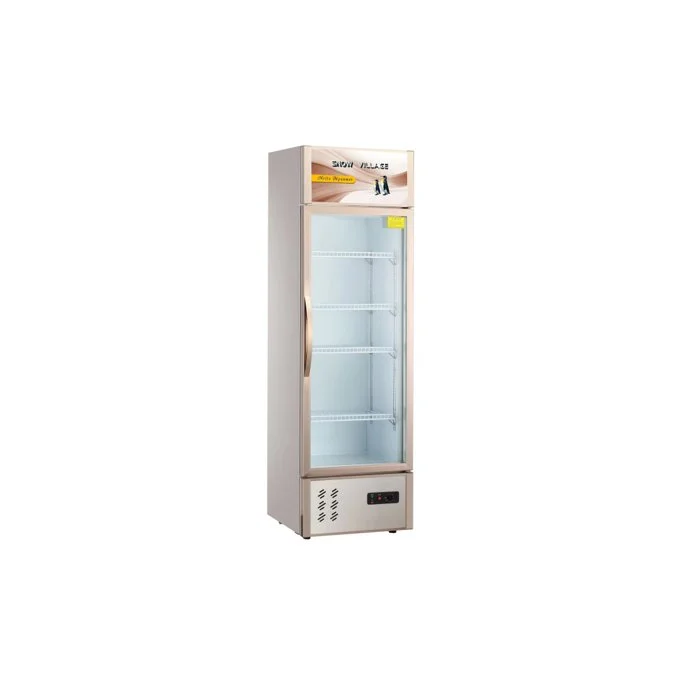

Vertical Display Cabinet Single Door Chiller (Aluminum Frame)
The SV-Blueline LC-298B is a single-door upright display chiller holding 298 litres between 0 and 10 °C. At 548 mm wide and 515 mm deep it takes barely half a metre of floor, which is what makes it the cabinet for a counter end, a service corridor or a shop aisle too narrow for a full multideck.
It draws 135 W at 220 V, about 0.6 A, on a 35 g charge of R600a isobutane. Climate class N rates the cabinet for ambient temperatures from 16 to 32 °C, so it holds its range in an unconditioned room but should not sit against a cooking line or in direct sun. The body is earthed to anti-shock protection class I and the cabinet weighs 51 kg empty.
298 litre capacity, 0 to 10 °C operating range. 548 × 515 × 1995 mm, half-metre floor footprint. 135 W at 220 V, 35 g R600a isobutane charge. Climate class N, rated for 16 to 32 °C ambient. Aluminium frame, 51 kg empty, protection class I.
