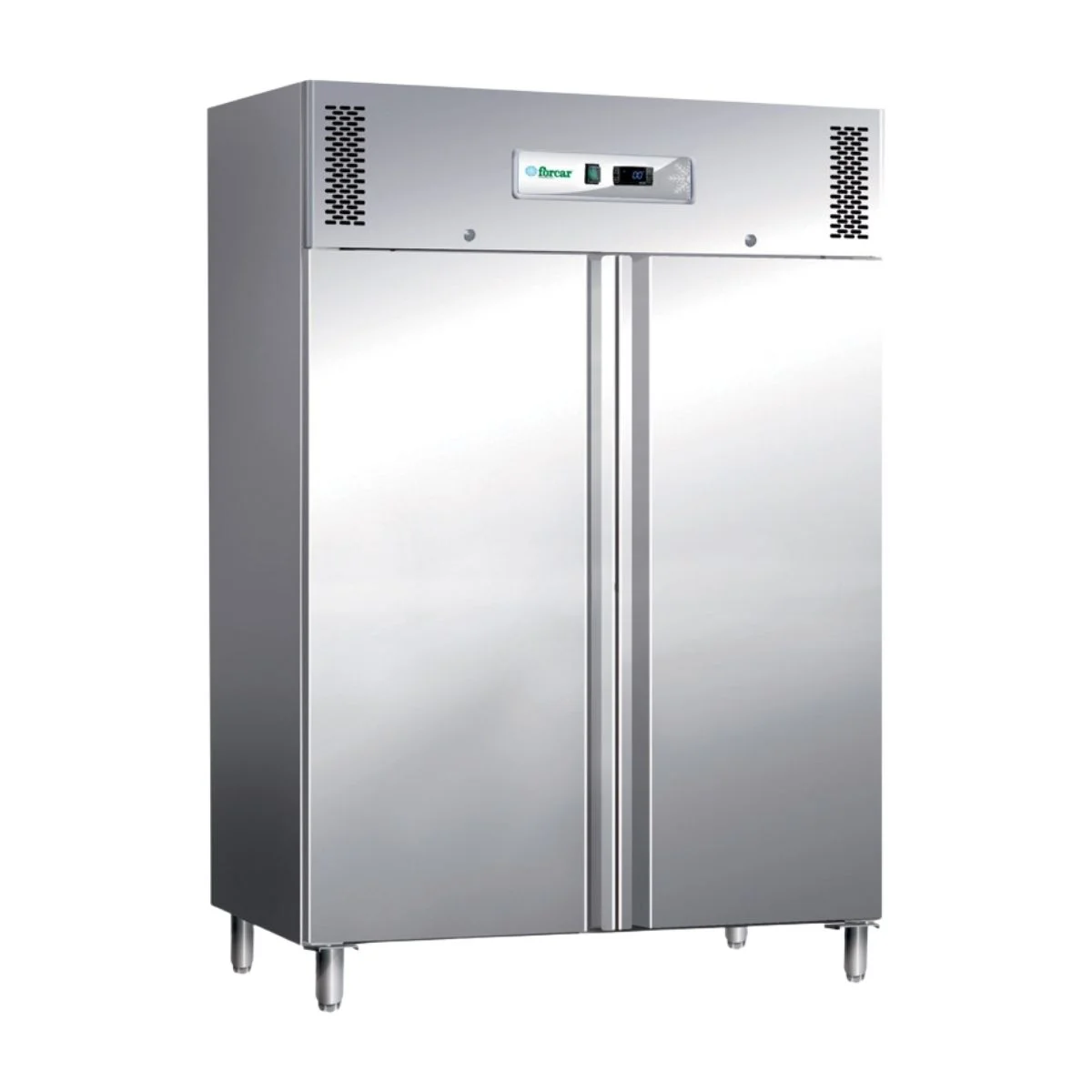

Upright Double Solid Door Chiller
The Blueline GN1410TN is a two-door upright reach-in chiller holding 1400 litres at -2 to +8 °C — full-height refrigerated storage on a small floor footprint, taking gastronorm shelves so pans move between the cabinet and the line without decanting. The cabinet measures 1480 × 830 × 2010 mm. Inside, the usable chamber is 1364 × 700 × 1401 mm.
Power is a single-phase 230 V / 50 Hz supply, so no three-phase provision is needed. At 188 kg empty it takes two people and a trolley to site. It runs on R290, a hydrocarbon refrigerant with a global warming potential of 3; the charge is sealed and small but flammable, so keep the ventilation clearance the installation sheet specifies. The compressor is an Embraco / ZEL unit under a Dixell digital thermostat.
1400 litre gross capacity at -2 to +8 °C. 1480 × 830 × 2010 mm external footprint, Adjustable shelves GN2/1: 3, all shelves mounted with anti-tipping system and Digital thermostat - Dixell.
